Chapter 9: Ordinary differential equations

Robert Johansson

Source code listings for Numerical Python - Scientific Computing and Data Science Applications with Numpy, SciPy and Matplotlib (ISBN 979-8-8688-0412-0).

import numpy as np

%matplotlib inline
%config InlineBackend.figure_format='retina'
import matplotlib as mpl
import matplotlib.pyplot as plt

# mpl.rcParams['text.usetex'] = True
mpl.rcParams["mathtext.fontset"] = "stix"
mpl.rcParams["font.family"] = "serif"
mpl.rcParams["font.sans-serif"] = "stix"

import sympy

sympy.init_printing()

from scipy import integrate

Symbolic ODE solving with SymPy¶

Newton’s law of cooling¶

t, k, T0, Ta = sympy.symbols("t, k, T_0, T_a")

T = sympy.Function("T")

ode = T(t).diff(t) + k * (T(t) - Ta)

ode

ode_sol = sympy.dsolve(ode)

ode_sol

ode_sol.lhs

ode_sol.rhs

ics = {T(0): T0}

ics

C_eq = ode_sol.subs(t, 0).subs(ics)

C_eq

C_sol = sympy.solve(C_eq)

C_sol

ode_sol.subs(C_sol[0])

Function for applying initial conditions¶

def apply_ics(sol, ics, x, known_params):
    """
    Apply the initial conditions (ics), given as a dictionary on
    the form ics = {y(0): y0: y(x).diff(x).subs(x, 0): yp0, ...}
    to the solution of the ODE with indepdendent variable x.
    The undetermined integration constants C1, C2, ... are extracted
    from the free symbols of the ODE solution, excluding symbols in
    the known_params list.
    """
    free_params = sol.free_symbols - set(known_params)
    eqs = [(sol.lhs - sol.rhs).diff(x, n).subs(x, 0).subs(ics) for n in range(len(ics))]
    sol_params = sympy.solve(eqs, free_params)
    return sol.subs(sol_params)

ode_sol

apply_ics(ode_sol, ics, t, [k, Ta])

ode_sol = apply_ics(ode_sol, ics, t, [k, Ta]).simplify()

ode_sol

y_x = sympy.lambdify((t, k), ode_sol.rhs.subs({T0: 5, Ta: 1}), "numpy")

fig, ax = plt.subplots(figsize=(8, 4))

x = np.linspace(0, 4, 100)

for k in [1, 2, 3]:
    ax.plot(x, y_x(x, k), label=r"$k=%d$" % k)

ax.set_title(r"$%s$" % sympy.latex(ode_sol), fontsize=18)
ax.set_xlabel(r"$x$", fontsize=18)
ax.set_ylabel(r"$y$", fontsize=18)
ax.legend()

fig.tight_layout()

Damped harmonic oscillator¶

t, omega0 = sympy.symbols("t, omega_0", positive=True)
gamma = sympy.symbols("gamma", complex=True)

x = sympy.Function("x")

ode = x(t).diff(t, 2) + 2 * gamma * omega0 * x(t).diff(t) + omega0**2 * x(t)

ode

ode_sol = sympy.dsolve(ode)

ode_sol

ics = {x(0): 1, x(t).diff(t).subs(t, 0): 0}

ics

x_t_sol = apply_ics(ode_sol, ics, t, [omega0, gamma])

x_t_sol

x_t_critical = sympy.limit(x_t_sol.rhs, gamma, 1)

x_t_critical

fig, ax = plt.subplots(figsize=(8, 4))

tt = np.linspace(0, 3, 250)
for g in [0.1, 0.5, 1, 2.0, 5.0]:
    if g == 1:
        expr = x_t_critical.subs({omega0: 2.0 * sympy.pi})
    else:
        expr = x_t_sol.rhs.subs({omega0: 2.0 * sympy.pi, gamma: g})
    x_t = sympy.lambdify(t, expr, "numpy")
    ax.plot(tt, x_t(tt).real, label=r"$\gamma = %.1f$" % g)

ax.set_xlabel(r"$t$", fontsize=18)
ax.set_ylabel(r"$x(t)$", fontsize=18)
ax.set_xlim(0, 3)
ax.legend()

fig.tight_layout()
fig.savefig("ch9-harmonic-oscillator.pdf")

fig, ax = plt.subplots(figsize=(8, 4))

tt = np.linspace(0, 3, 250)
for g in [0.1, 0.5, 1, 2.0, 5.0]:
    if g == 1:
        x_t = sympy.lambdify(t, x_t_critical.subs({omega0: 2.0 * sympy.pi}), "numpy")
    else:
        x_t = sympy.lambdify(
            t, x_t_sol.rhs.subs({omega0: 2.0 * sympy.pi, gamma: g}), "numpy"
        )
    ax.plot(tt, x_t(tt).real, label=r"$\gamma = %.1f$" % g)

ax.set_xlabel(r"$t$", fontsize=18)
ax.set_ylabel(r"$x(t)$", fontsize=18)
ax.set_xlim(0, 3)
ax.legend()

fig.tight_layout()
fig.savefig("ch9-harmonic-oscillator.pdf")

# example of equation that sympy cannot solve

x = sympy.symbols("x")

y = sympy.Function("y")

f = y(x) ** 2 + x

sympy.Eq(y(x).diff(x, x), f)

# sympy is unable to solve this differential equation exactly
# sympy.dsolve(y(x).diff(x, x) - f)

Direction fields¶

def plot_direction_field(x, y_x, f_xy, x_lim=(-5, 5), y_lim=(-5, 5), ax=None):
    f_np = sympy.lambdify((x, y_x), f_xy, "numpy")

    x_vec = np.linspace(x_lim[0], x_lim[1], 20)
    y_vec = np.linspace(y_lim[0], y_lim[1], 20)

    if ax is None:
        _, ax = plt.subplots(figsize=(4, 4))

    dx = x_vec[1] - x_vec[0]
    dy = y_vec[1] - y_vec[0]

    for m, xx in enumerate(x_vec):
        for n, yy in enumerate(y_vec):
            Dy = f_np(xx, yy) * dx
            Dx = 0.8 * dx**2 / np.sqrt(dx**2 + Dy**2)
            Dy = 0.8 * Dy * dy / np.sqrt(dx**2 + Dy**2)
            ax.plot([xx - Dx / 2, xx + Dx / 2], [yy - Dy / 2, yy + Dy / 2], "b", lw=0.5)
    ax.axis("tight")

    ax.set_title(r"$%s$" % (sympy.latex(sympy.Eq(y(x).diff(x), f_xy))), fontsize=18)

    return ax

x = sympy.symbols("x")

y = sympy.Function("y")

fig, axes = plt.subplots(1, 3, figsize=(12, 4))

plot_direction_field(x, y(x), y(x) ** 2 + x, ax=axes[0])
plot_direction_field(x, y(x), -x / y(x), ax=axes[1])
plot_direction_field(x, y(x), y(x) ** 2 / x, ax=axes[2])

fig.tight_layout()
fig.savefig("ch9-direction-field.pdf")

Inexact solutions to ODEs¶

x = sympy.symbols("x")

y = sympy.Function("y")

f = y(x) ** 2 + x
# f = sympy.cos(y(x)**2) + x
# f = sympy.sqrt(y(x)) * sympy.cos(x**2)
# f = y(x)**2 / x

sympy.Eq(y(x).diff(x), f)

ics = {y(0): 0}

sympy.dsolve(
    y(x).diff(x) - f, hint="1st_power_series"
)  # use hint to get power series approximation

ode_sol = sympy.dsolve(y(x).diff(x) - f, hint="1st_power_series")

ode_sol

ode_sol = apply_ics(ode_sol, {y(0): 0}, x, [])

ode_sol

sympy.classify_ode(y(x).diff(x) - f)

('1st_rational_riccati', '1st_power_series', 'lie_group')

ode_sol = sympy.dsolve(y(x).diff(x) - f, ics=ics, hint="1st_power_series")

ode_sol

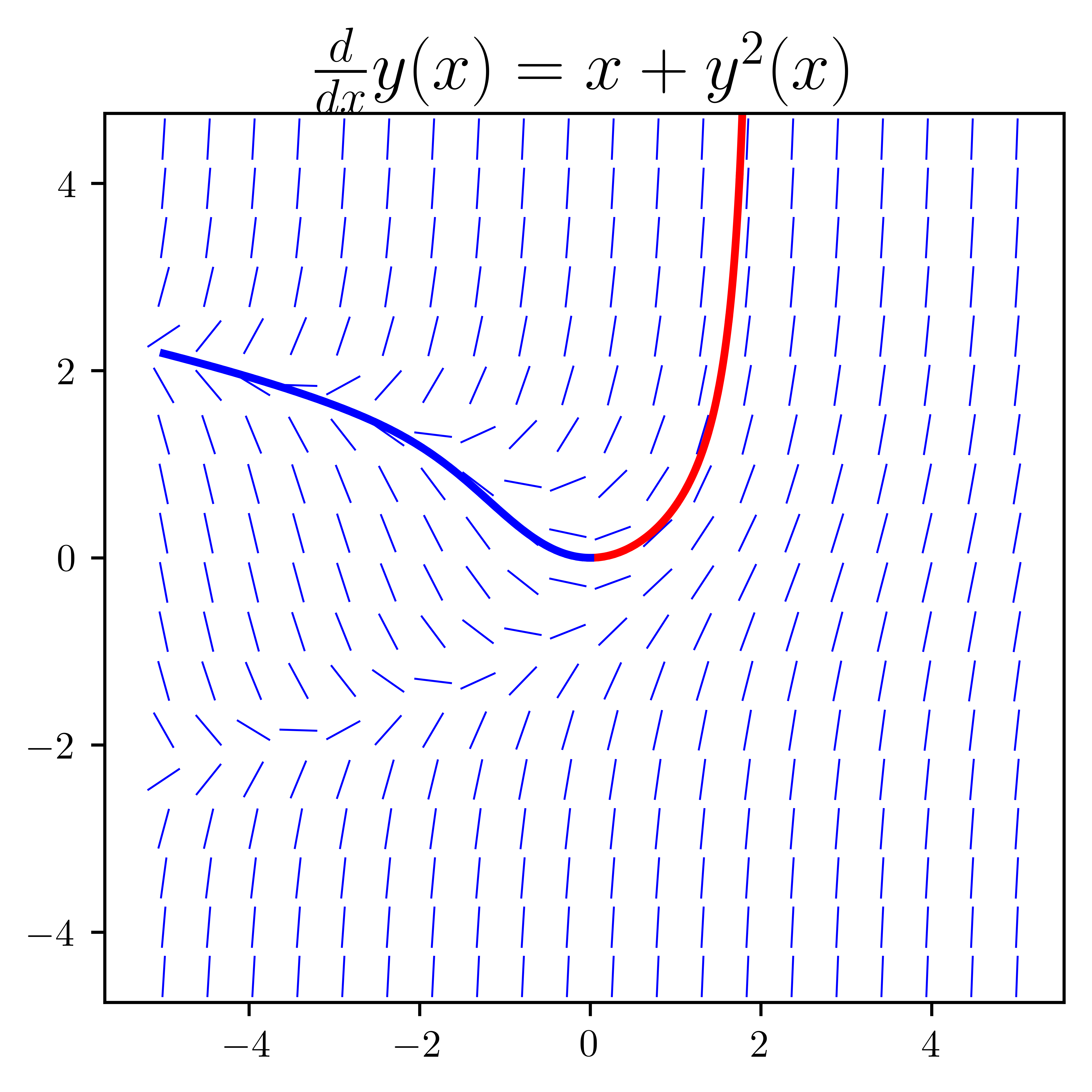

fig, axes = plt.subplots(1, 1, figsize=(4, 4))

axes = [0, axes]

plot_direction_field(x, y(x), f, ax=axes[1])
x_vec = np.linspace(-1, 1, 100)
# axes[1].plot(x_vec, sympy.lambdify(x, ode_sol.rhs.removeO())(x_vec), 'b', lw=2)

ode_sol_m = ode_sol_p = ode_sol
dx = 0.125
for x0 in np.arange(0, 2.0, dx):
    x_vec = np.linspace(x0, x0 + dx, 100)
    ics = {y(x0): ode_sol_p.rhs.removeO().subs(x, x0)}
    ode_sol_p = sympy.dsolve(y(x).diff(x) - f, ics=ics, n=6, hint="1st_power_series")
    axes[1].plot(x_vec, sympy.lambdify(x, ode_sol_p.rhs.removeO())(x_vec), "r", lw=2)

for x0 in np.arange(0, -5, -dx):
    x_vec = np.linspace(x0, x0 - dx, 100)
    ics = {y(x0): ode_sol_m.rhs.removeO().subs(x, x0)}
    ode_sol_m = sympy.dsolve(y(x).diff(x) - f, ics=ics, n=6, hint="1st_power_series")
    axes[1].plot(x_vec, sympy.lambdify(x, ode_sol_m.rhs.removeO())(x_vec), "b", lw=2)

axes[1].set_ylim(-4.75, 4.75)
axes[1].set_ylim(-4.75, 4.75)

fig.tight_layout()
fig.savefig("ch9-direction-field-and-approx-sol.pdf")

fig, axes = plt.subplots(1, 2, figsize=(8, 4))

plot_direction_field(x, y(x), f, ax=axes[0])
x_vec = np.linspace(-3, 3, 100)
axes[0].plot(x_vec, sympy.lambdify(x, ode_sol.rhs.removeO())(x_vec), "b", lw=2)
axes[0].set_ylim(-5, 5)

plot_direction_field(x, y(x), f, ax=axes[1])
x_vec = np.linspace(-1, 1, 100)
axes[1].plot(x_vec, sympy.lambdify(x, ode_sol.rhs.removeO())(x_vec), "b", lw=2)

ode_sol_m = ode_sol_p = ode_sol
dx = 0.125
for x0 in np.arange(1, 2.0, dx):
    x_vec = np.linspace(x0, x0 + dx, 100)
    ics = {y(x0): ode_sol_p.rhs.removeO().subs(x, x0)}
    ode_sol_p = sympy.dsolve(y(x).diff(x) - f, ics=ics, n=6, hint="1st_power_series")
    axes[1].plot(x_vec, sympy.lambdify(x, ode_sol_p.rhs.removeO())(x_vec), "r", lw=2)

for x0 in np.arange(-1, -5, -dx):
    x_vec = np.linspace(x0, x0 - dx, 100)
    ics = {y(x0): ode_sol_m.rhs.removeO().subs(x, x0)}
    ode_sol_m = sympy.dsolve(y(x).diff(x) - f, ics=ics, n=6, hint="1st_power_series")
    axes[1].plot(x_vec, sympy.lambdify(x, ode_sol_m.rhs.removeO())(x_vec), "r", lw=2)

fig.tight_layout()
fig.savefig("ch9-direction-field-and-approx-sol.pdf")

Laplace transformation method¶

t = sympy.symbols("t", positive=True)

s, Y = sympy.symbols("s, Y", real=True)

y = sympy.Function("y")

ode = y(t).diff(t, 2) + 2 * y(t).diff(t) + 10 * y(t) - 2 * sympy.sin(3 * t)

ode

L_y = sympy.laplace_transform(y(t), t, s)[0]

L_y

# L_ode = sympy.laplace_transform(ode, t, s, noconds=True)  # previously like this, not working now
L_ode = sympy.laplace_transform(ode, t, s)[0]  # instead use this

L_ode

def laplace_transform_derivatives(e):
    """
    Evaluate the laplace transforms of derivatives of functions
    """
    if isinstance(e, sympy.LaplaceTransform):
        if isinstance(e.args[0], sympy.Derivative):
            d, t, s = e.args
            n = d.args[1][1]
            return (s**n) * sympy.LaplaceTransform(d.args[0], t, s) - sum(
                [
                    s ** (n - i) * sympy.diff(d.args[0], t, i - 1).subs(t, 0)
                    for i in range(1, n + 1)
                ]
            )

    if isinstance(e, (sympy.Add, sympy.Mul)):
        t = type(e)
        return t(*[laplace_transform_derivatives(arg) for arg in e.args])

    return e

L_ode

L_ode_2 = laplace_transform_derivatives(L_ode)

L_ode_2

L_ode_3 = L_ode_2.subs(L_y, Y)

L_ode_3

ics = {y(0): 1, y(t).diff(t).subs(t, 0): 0}

ics

L_ode_4 = L_ode_3.subs(ics)

L_ode_4

Y_sol = sympy.solve(L_ode_4, Y)

Y_sol

sympy.apart(Y_sol[0])

y_sol = sympy.inverse_laplace_transform(Y_sol[0], s, t)

sympy.simplify(y_sol)

sympy.simplify(y_sol).evalf()

y_t = sympy.lambdify(t, y_sol.evalf(), "numpy")

fig, ax = plt.subplots(figsize=(8, 4))

tt = np.linspace(0, 10, 500)
ax.plot(tt, y_t(tt).real)
ax.set_xlabel(r"$t$", fontsize=18)
ax.set_ylabel(r"$y(t)$", fontsize=18)
fig.tight_layout()

Numerical integration of ODEs using SciPy¶

x = sympy.symbols("x")

y = sympy.Function("y")

f = y(x) ** 2 + x

f_np = sympy.lambdify((y(x), x), f, "math")

y0 = 0

xp = np.linspace(0, 1.9, 100)

xp.shape

yp = integrate.odeint(f_np, y0, xp)

xm = np.linspace(0, -5, 100)

ym = integrate.odeint(f_np, y0, xm)

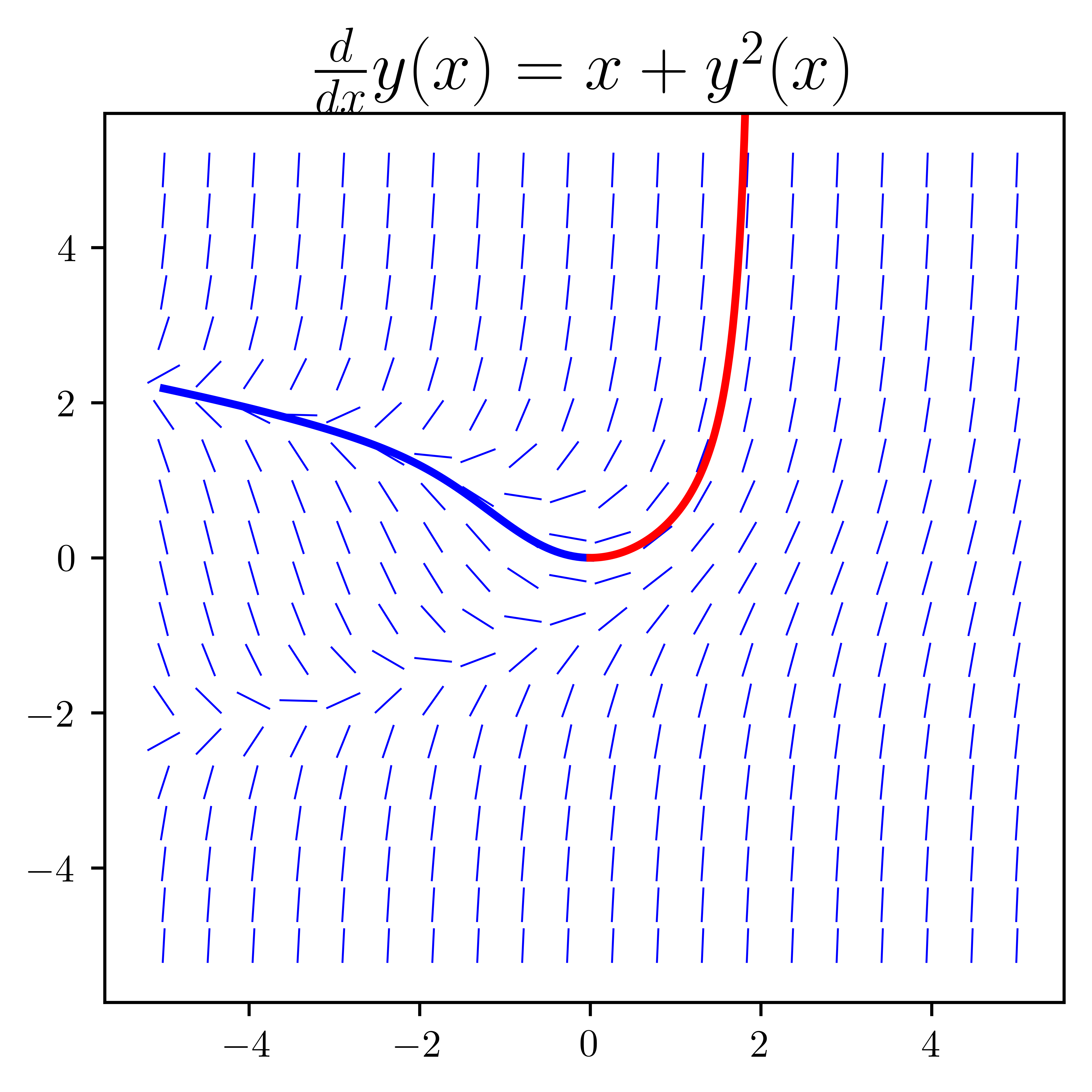

fig, ax = plt.subplots(1, 1, figsize=(4, 4))
plot_direction_field(x, y(x), f, ax=ax)
ax.plot(xm, ym, "b", lw=2)
ax.plot(xp, yp, "r", lw=2)
fig.savefig("ch9-odeint-single-eq-example.pdf")

Lotka-Volterra equations for predator/pray populations¶

x'(t) = a x - b x y

(1)

y'(t) = c x y - d y

(2)

a, b, c, d = 0.4, 0.002, 0.001, 0.7

def f(xy, t):
    x, y = xy
    return [a * x - b * x * y, c * x * y - d * y]

xy0 = [600, 400]

t = np.linspace(0, 50, 250)

xy_t = integrate.odeint(f, xy0, t)

xy_t.shape

fig, axes = plt.subplots(1, 2, figsize=(8, 4))

axes[0].plot(t, xy_t[:, 0], "r", label="Prey")
axes[0].plot(t, xy_t[:, 1], "b", label="Predator")
axes[0].set_xlabel("Time")
axes[0].set_ylabel("Number of animals")
axes[0].legend(loc=2, facecolor="white", framealpha=1)

axes[1].plot(xy_t[:, 0], xy_t[:, 1], "k")
axes[1].set_xlabel("Number of prey")
axes[1].set_ylabel("Number of predators")
fig.tight_layout()
fig.savefig("ch9-lokta-volterra.pdf")

Lorenz equations¶

x'(t) = \sigma(y - x)

(3)

y'(t) = x(\rho - z) - y

(4)

z'(t) = x y - \beta z

(5)

def f(xyz, t, rho, sigma, beta):
    x, y, z = xyz
    return [sigma * (y - x), x * (rho - z) - y, x * y - beta * z]

rho = 28
sigma = 8
beta = 8 / 3.0

t = np.linspace(0, 25, 10000)

xyz0 = [1.0, 1.0, 1.0]

xyz1 = integrate.odeint(f, xyz0, t, args=(rho, sigma, beta))

xyz2 = integrate.odeint(f, xyz0, t, args=(rho, sigma, 0.6 * beta))

xyz3 = integrate.odeint(f, xyz0, t, args=(rho, 2 * sigma, 0.6 * beta))

xyz3.shape

from mpl_toolkits.mplot3d.axes3d import Axes3D

fig, (ax1, ax2, ax3) = plt.subplots(
    1, 3, figsize=(12, 3.5), subplot_kw={"projection": "3d"}
)

for ax, xyz, c, p in [
    (ax1, xyz1, "r", (rho, sigma, beta)),
    (ax2, xyz2, "b", (rho, sigma, 0.6 * beta)),
    (ax3, xyz3, "g", (rho, 2 * sigma, 0.6 * beta)),
]:
    ax.plot(xyz[:, 0], xyz[:, 1], xyz[:, 2], c, alpha=0.5)
    ax.set_xlabel("$x$", fontsize=16)
    ax.set_ylabel("$y$", fontsize=16)
    ax.set_zlabel("$z$", fontsize=16)
    ax.set_xticks([-15, 0, 15])
    ax.set_yticks([-20, 0, 20])
    ax.set_zticks([0, 20, 40])
    ax.set_title(r"$\rho=%.1f, \sigma=%.1f, \beta=%.1f$" % (p[0], p[1], p[2]))

fig.tight_layout()
fig.savefig("ch9-lorenz-equations.pdf")

Coupled damped springs¶

As second-order equations:

\begin{align*} m_1 x_1''(t) + \gamma_1 x_1'(t) + k_1 (x_1(t) - l_1) - k_2 (x_2(t) - x_1(t) - l_2) &=& 0\\ m_2 x_2''(t) + \gamma_2 x_2' + k_2 (x_2 - x_1 - l_2) &=& 0 \end{align*}

(6)

On standard form:

\begin{align} y_1'(t) &= y_2(t) \\ y_2'(t) &= -\gamma_1/m_1 y_2(t) - k_1/m_1 (y_1(t) - l_1) + k_2 (y_3(t) - y_1(t) - l_2)/m_1 \\ y_3'(t) &= y_4(t) \\ y_4'(t) &= - \gamma_2 y_4(t)/m_2 - k_2 (y_3(t) - y_1(t) - l_2)/m_2 \\ \end{align}

(7)

def f(t, y, args):
    m1, k1, g1, m2, k2, g2 = args

    return [
        y[1],
        -k1 / m1 * y[0] + k2 / m1 * (y[2] - y[0]) - g1 / m1 * y[1],
        y[3],
        -k2 / m2 * (y[2] - y[0]) - g2 / m2 * y[3],
    ]

m1, k1, g1 = 1.0, 10.0, 0.5

m2, k2, g2 = 2.0, 40.0, 0.25

args = (m1, k1, g1, m2, k2, g2)

y0 = [1.0, 0, 0.5, 0]

t = np.linspace(0, 20, 1000)

r = integrate.ode(f)

r.set_integrator("lsoda")

<scipy.integrate._ode.ode at 0x73d31c3becf0>

r.set_initial_value(y0, t[0])

<scipy.integrate._ode.ode at 0x73d31c3becf0>

r.set_f_params(args)

<scipy.integrate._ode.ode at 0x73d31c3becf0>

dt = t[1] - t[0]
y = np.zeros((len(t), len(y0)))
idx = 0
while r.successful() and r.t < t[-1]:
    y[idx, :] = r.y
    r.integrate(r.t + dt)
    idx += 1

fig = plt.figure(figsize=(10, 4))
ax1 = plt.subplot2grid((2, 5), (0, 0), colspan=3)
ax2 = plt.subplot2grid((2, 5), (1, 0), colspan=3)
ax3 = plt.subplot2grid((2, 5), (0, 3), colspan=2, rowspan=2)

ax1.plot(t, y[:, 0], "r")
ax1.set_ylabel("$x_1$", fontsize=18)
ax1.set_yticks([-1, -0.5, 0, 0.5, 1])

ax2.plot(t, y[:, 2], "b")
ax2.set_xlabel("$t$", fontsize=18)
ax2.set_ylabel("$x_2$", fontsize=18)
ax2.set_yticks([-1, -0.5, 0, 0.5, 1])

ax3.plot(y[:, 0], y[:, 2], "k")
ax3.set_xlabel("$x_1$", fontsize=18)
ax3.set_ylabel("$x_2$", fontsize=18)
ax3.set_xticks([-1, -0.5, 0, 0.5, 1])
ax3.set_yticks([-1, -0.5, 0, 0.5, 1])

fig.tight_layout()
fig.savefig("ch9-coupled-damped-springs.pdf")

Same calculation as above, but with specifying the Jacobian as well:¶

def jac(t, y, args):
    m1, k1, g1, m2, k2, g2 = args

    return [
        [0, 1, 0, 0],
        [-k1 / m1 - k2 / m1, -g1 / m1, k2 / m1, 0],
        [0, 0, 0, 1],
        [k2 / m2, 0, -k2 / m2, -g2 / m2],
    ]

r = (
    integrate.ode(f, jac)
    .set_f_params(args)
    .set_jac_params(args)
    .set_initial_value(y0, t[0])
)

dt = t[1] - t[0]
y = np.zeros((len(t), len(y0)))
idx = 0
while r.successful() and r.t < t[-1]:
    y[idx, :] = r.y
    r.integrate(r.t + dt)
    idx += 1

fig = plt.figure(figsize=(10, 4))
ax1 = plt.subplot2grid((2, 5), (0, 0), colspan=3)
ax2 = plt.subplot2grid((2, 5), (1, 0), colspan=3)
ax3 = plt.subplot2grid((2, 5), (0, 3), colspan=2, rowspan=2)

ax1.plot(t, y[:, 0], "r")
ax1.set_ylabel("$x_1$", fontsize=18)
ax1.set_yticks([-1, -0.5, 0, 0.5, 1])

ax2.plot(t, y[:, 2], "b")
ax2.set_xlabel("$t$", fontsize=18)
ax2.set_ylabel("$x_2$", fontsize=18)
ax2.set_yticks([-1, -0.5, 0, 0.5, 1])

ax3.plot(y[:, 0], y[:, 2], "k")
ax3.set_xlabel("$x_1$", fontsize=18)
ax3.set_ylabel("$x_2$", fontsize=18)
ax3.set_xticks([-1, -0.5, 0, 0.5, 1])
ax3.set_yticks([-1, -0.5, 0, 0.5, 1])

fig.tight_layout()

Same calculation, but using SymPy to setup the problem for SciPy¶

L1 = L2 = 0
t = sympy.symbols("t")
m1, k1, b1 = sympy.symbols("m_1, k_1, b_1")
m2, k2, b2 = sympy.symbols("m_2, k_2, b_2")

x1 = sympy.Function("x_1")
x2 = sympy.Function("x_2")

ode1 = sympy.Eq(
    m1
    * x1(t).diff(
        t,
        t,
    )
    + b1 * x1(t).diff(t)
    + k1 * (x1(t) - L1)
    - k2 * (x2(t) - x1(t) - L2),
    0,
)

ode2 = sympy.Eq(
    m2
    * x2(t).diff(
        t,
        t,
    )
    + b2 * x2(t).diff(t)
    + k2 * (x2(t) - x1(t) - L2),
    0,
)

params = {m1: 1.0, k1: 10.0, b1: 0.5, m2: 2.0, k2: 40.0, b2: 0.25}

args

y1 = sympy.Function("y_1")
y2 = sympy.Function("y_2")
y3 = sympy.Function("y_3")
y4 = sympy.Function("y_4")

varchange = {
    x1(t).diff(t, t): y2(t).diff(t),
    x1(t): y1(t),
    x2(t).diff(t, t): y4(t).diff(t),
    x2(t): y3(t),
}

(ode1.subs(varchange).lhs, ode2.subs(varchange).lhs)

ode3 = y1(t).diff(t) - y2(t)

ode4 = y3(t).diff(t) - y4(t)

vcsol = sympy.solve(
    (ode1.subs(varchange), ode2.subs(varchange), ode3, ode4),
    (y1(t).diff(t), y2(t).diff(t), y3(t).diff(t), y4(t).diff(t)),
)

vcsol

ode_rhs = sympy.Matrix(
    [y1(t).diff(t), y2(t).diff(t), y3(t).diff(t), y4(t).diff(t)]
).subs(vcsol)

y = sympy.Matrix([y1(t), y2(t), y3(t), y4(t)])

sympy.Eq(y.diff(t), ode_rhs)

ode_rhs.subs(params)

_f_np = sympy.lambdify((t, y), ode_rhs.subs(params), "numpy")
f_np = lambda _x, _y, *args: _f_np(_x, _y).flatten()

y0 = [1.0, 0, 0.5, 0]
tt = np.linspace(0, 20, 1000)

r = integrate.ode(f_np)
r.set_integrator("lsoda")
r.set_initial_value(y0, tt[0])
dt = tt[1] - tt[0]
yy = np.zeros((len(tt), len(y0)))
idx = 0
while r.successful() and r.t < tt[-1]:
    yy[idx, :] = r.y
    r.integrate(r.t + dt)
    idx += 1

fig = plt.figure(figsize=(10, 4))
ax1 = plt.subplot2grid((2, 5), (0, 0), colspan=3)
ax2 = plt.subplot2grid((2, 5), (1, 0), colspan=3)
ax3 = plt.subplot2grid((2, 5), (0, 3), colspan=2, rowspan=2)

ax1.plot(tt, yy[:, 0], "r")
ax1.set_ylabel("$x_1$", fontsize=18)
ax1.set_yticks([-1, -0.5, 0, 0.5, 1])

ax2.plot(tt, yy[:, 2], "b")
ax2.set_xlabel("$t$", fontsize=18)
ax2.set_ylabel("$x_2$", fontsize=18)
ax2.set_yticks([-1, -0.5, 0, 0.5, 1])

ax3.plot(yy[:, 0], yy[:, 2], "k")
ax3.set_xlabel("$x_1$", fontsize=18)
ax3.set_ylabel("$x_2$", fontsize=18)
ax3.set_xticks([-1, -0.5, 0, 0.5, 1])
ax3.set_yticks([-1, -0.5, 0, 0.5, 1])

fig.tight_layout()

Doube pendulum¶

http://scienceworld.wolfram.com/physics/DoublePendulum.html

(m_1+m_2) l_1\theta_1'' + m_2l_2\theta_2''\cos(\theta_1-\theta_2) + m_2l_2(\theta_2')^2\sin(\theta_1-\theta_2)+g(m_1+m_2)\sin(\theta_1) = 0

(8)

m_2l_2\theta_2'' + m_2l_1\theta_1''\cos(\theta_1-\theta_2) - m_2l_1 (\theta_1')^2 \sin(\theta_1-\theta_2) +m_2g\sin(\theta_2) = 0

(9)

t, g, m1, l1, m2, l2 = sympy.symbols("t, g, m_1, l_1, m_2, l_2")

theta1, theta2 = sympy.symbols("theta_1, theta_2", cls=sympy.Function)

ode1 = sympy.Eq(
    (m1 + m2) * l1 * theta1(t).diff(t, t)
    + m2 * l2 * theta2(t).diff(t, t) * sympy.cos(theta1(t) - theta2(t))
    + m2 * l2 * theta2(t).diff(t) ** 2 * sympy.sin(theta1(t) - theta2(t))
    + g * (m1 + m2) * sympy.sin(theta1(t)),
    0,
)
ode1

ode2 = sympy.Eq(
    m2 * l2 * theta2(t).diff(t, t)
    + m2 * l1 * theta1(t).diff(t, t) * sympy.cos(theta1(t) - theta2(t))
    - m2 * l1 * theta1(t).diff(t) ** 2 * sympy.sin(theta1(t) - theta2(t))
    + m2 * g * sympy.sin(theta2(t)),
    0,
)
ode2

# this is fruitless, sympy cannot solve these ODEs
try:
    sympy.dsolve(ode1, ode2)
except Exception as e:
    print(e)

cannot determine truth value of Relational: Eq(g*m_2*sin(theta_2(t)) - l_1*m_2*sin(theta_1(t) - theta_2(t))*Derivative(theta_1(t), t)**2 + l_1*m_2*cos(theta_1(t) - theta_2(t))*Derivative(theta_1(t), (t, 2)) + l_2*m_2*Derivative(theta_2(t), (t, 2)), 0)

y1, y2, y3, y4 = sympy.symbols("y_1, y_2, y_3, y_4", cls=sympy.Function)

varchange = {
    theta1(t).diff(t, t): y2(t).diff(t),
    theta1(t): y1(t),
    theta2(t).diff(t, t): y4(t).diff(t),
    theta2(t): y3(t),
}

ode1_vc = ode1.subs(varchange)

ode2_vc = ode2.subs(varchange)

ode3 = y1(t).diff(t) - y2(t)

ode4 = y3(t).diff(t) - y4(t)

ode3 = sympy.Eq(y1(t).diff(t), y2(t))
ode4 = sympy.Eq(y3(t).diff(t), y4(t))

y = sympy.Matrix([y1(t), y2(t), y3(t), y4(t)])

vcsol = sympy.solve((ode1_vc, ode2_vc, ode3, ode4), y.diff(t), dict=True)

f = y.diff(t).subs(vcsol[0])

sympy.Eq(y.diff(t), f)

params = {m1: 5.0, l1: 2.0, m2: 1.0, l2: 1.0, g: 10.0}

_f_np = sympy.lambdify((t, y), f.subs(params), "numpy")
f_np = lambda _t, _y, *args: _f_np(_t, _y).flatten()

jac = sympy.Matrix([[fj.diff(yi) for yi in y] for fj in f])

_jac_np = sympy.lambdify((t, y), jac.subs(params), "numpy")
jac_np = lambda _t, _y, *args: _jac_np(_t, _y)

y0 = [2.0, 0, 0.0, 0]

tt = np.linspace(0, 20, 1000)

%%time

r = integrate.ode(f_np, jac_np).set_initial_value(y0, tt[0])
dt = tt[1] - tt[0]
yy = np.zeros((len(tt), len(y0)))
idx = 0
while r.successful() and r.t < tt[-1]:
    yy[idx, :] = r.y
    r.integrate(r.t + dt)
    idx += 1

CPU times: user 34 ms, sys: 6.67 ms, total: 40.6 ms
Wall time: 30.7 ms

fig = plt.figure(figsize=(10, 4))
ax1 = plt.subplot2grid((2, 5), (0, 0), colspan=3)
ax2 = plt.subplot2grid((2, 5), (1, 0), colspan=3)
ax3 = plt.subplot2grid((2, 5), (0, 3), colspan=2, rowspan=2)

ax1.plot(tt, yy[:, 0], "r")
ax1.set_ylabel(r"$\theta_1$", fontsize=18)

ax2.plot(tt, yy[:, 2], "b")
ax2.set_xlabel("$t$", fontsize=18)
ax2.set_ylabel(r"$\theta_2$", fontsize=18)

ax3.plot(yy[:, 0], yy[:, 2], "k")
ax3.set_xlabel(r"$\theta_1$", fontsize=18)
ax3.set_ylabel(r"$\theta_2$", fontsize=18)

fig.tight_layout()

theta1_np, theta2_np = yy[:, 0], yy[:, 2]

x1 = params[l1] * np.sin(theta1_np)
y1 = -params[l1] * np.cos(theta1_np)
x2 = x1 + params[l2] * np.sin(theta2_np)
y2 = y1 - params[l2] * np.cos(theta2_np)

fig = plt.figure(figsize=(10, 4))
ax1 = plt.subplot2grid((2, 5), (0, 0), colspan=3)
ax2 = plt.subplot2grid((2, 5), (1, 0), colspan=3)
ax3 = plt.subplot2grid((2, 5), (0, 3), colspan=2, rowspan=2)

ax1.plot(tt, x1, "r")
ax1.plot(tt, y1, "b")
ax1.set_ylabel("$x_1, y_1$", fontsize=18)
ax1.set_yticks([-3, 0, 3])

ax2.plot(tt, x2, "r")
ax2.plot(tt, y2, "b")
ax2.set_xlabel("$t$", fontsize=18)
ax2.set_ylabel("$x_2, y_2$", fontsize=18)
ax2.set_yticks([-3, 0, 3])

ax3.plot(x1, y1, "r", lw=2.0, label="trajectory of pendulum 1")
ax3.plot(x2, y2, "b", lw=0.5, label="trajectory of pendulum 2")
ax3.set_xlabel("$x$", fontsize=18)
ax3.set_ylabel("$y$", fontsize=18)
ax3.set_xticks([-3, 0, 3])
ax3.set_yticks([-3, 0, 3])
ax3.legend()

fig.tight_layout()
fig.savefig("ch9-double-pendulum.pdf")

References¶

Johansson, R. (2024). Numerical Python: Scientific Computing and Data Science Applications with Numpy, SciPy and Matplotlib. Apress. 10.1007/979-8-8688-0413-7
