First import the most important modules
import time
import matplotlib.pyplot as plt
import numpy as npNumpy arrays¶
The main advantage of numpy is arrays. It’s a way to add / subtract / multiply / ... many numbers in one line.
Creation of arrays¶
There are many ways to create arrays, the most important one are listed below
# create numpy array from a python list
a = np.array([1, 2, 3])
print(a)
print(type(a))
# create numpy array with zeros
b = np.zeros(5)
print(b)
# create numpy array with equal spacing
c = np.linspace(0, 10, 5) # start stop steps
print(c)
# or
c = np.arange(0, 10, 2) # start stop stepzise
print(c)[1 2 3]
<class 'numpy.ndarray'>
[0. 0. 0. 0. 0.]
[ 0. 2.5 5. 7.5 10. ]
[0 2 4 6 8]
Multidimensional arrays are possible, too.
# create 2d array
d = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
print(d)
print(d.shape) # shows the dimensions of the array
# or 2d zeros
e = np.zeros((3, 3))
print(e)[[1 2 3]
[4 5 6]
[7 8 9]]
(3, 3)
[[0. 0. 0.]
[0. 0. 0.]
[0. 0. 0.]]
Access and slicing¶
We can of course also modify the entries of an array:
a = np.array([1, 2, 3])
print("before", a)
a[0] = 10 # access first element and set it to 10
print("after", a)
print("last element", a[-1])
b = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
print(b[0, 1]) # access element in the first row, second columnbefore [1 2 3]
after [10 2 3]
last element 3
2
Another nice feature of numpy is slicing, which allows accessing ranges of arrays.
We can use the “:” operator for this, which takes up to three parameters i:j:k, denoting the start index, stop index, and step size.
print(a[1:2]) # Note that the index j itself is not printed
print(a[1:])
# or in higher dimensions
print(b[:, 1]) # access all rows, second column
print(b[1, :]) # access second row, all columns[2]
[2 3]
[2 5 8]
[4 5 6]
Exercises¶
Create an array with times steps between 0, 0.01, 0.02, 0.03 ... 1
Print from this the numbers 0.5, 0.51,...,0.56
Create a 3x3 array with the numbers from 1-9. (.reshape may help...)
Print the second column, and the second row
Change the number in the middle to 55
Print the 2nd row and column again
Solutions¶
# 1
a = np.linspace(0, 1, 101)
print("Ex1\n", a[50:57])
# 2
b = np.arange(0, 9).reshape(3, 3)
print("Ex2\n", b)
print(b[:, 1], b[1, :])
b[1, 1] = 55
print(b[:, 1], b[1, :])Ex1
[0.5 0.51 0.52 0.53 0.54 0.55 0.56]
Ex2
[[0 1 2]
[3 4 5]
[6 7 8]]
[1 4 7] [3 4 5]
[ 1 55 7] [ 3 55 5]
Basic arithmetics and functions¶
You can add, multiply, ... arrays like normal numbers, if the other element is
a scalar
an array of same size
a = np.linspace(0, 10, 5)
print("a", a)
b = 3 * a + 1
print("3a+1", b)
print("a^2-b", a**2 - b)
print("The sum of ", a, "is ", np.sum(a))a [ 0. 2.5 5. 7.5 10. ]
3a+1 [ 1. 8.5 16. 23.5 31. ]
a^2-b [-1. -2.25 9. 32.75 69. ]
The sum of [ 0. 2.5 5. 7.5 10. ] is 25.0
This works for functions as well:
times = np.linspace(0, 2 * np.pi, 100)
signal = np.sin(times)
plt.plot(times, signal, label="sin(t)")
plt.title("A wonderful plot")
plt.xlabel("t")
plt.ylabel("signal")
plt.legend()
plt.show()
Exercises¶
Calculate the scalar product of the vectors (1,2,3) and (3,2,1)

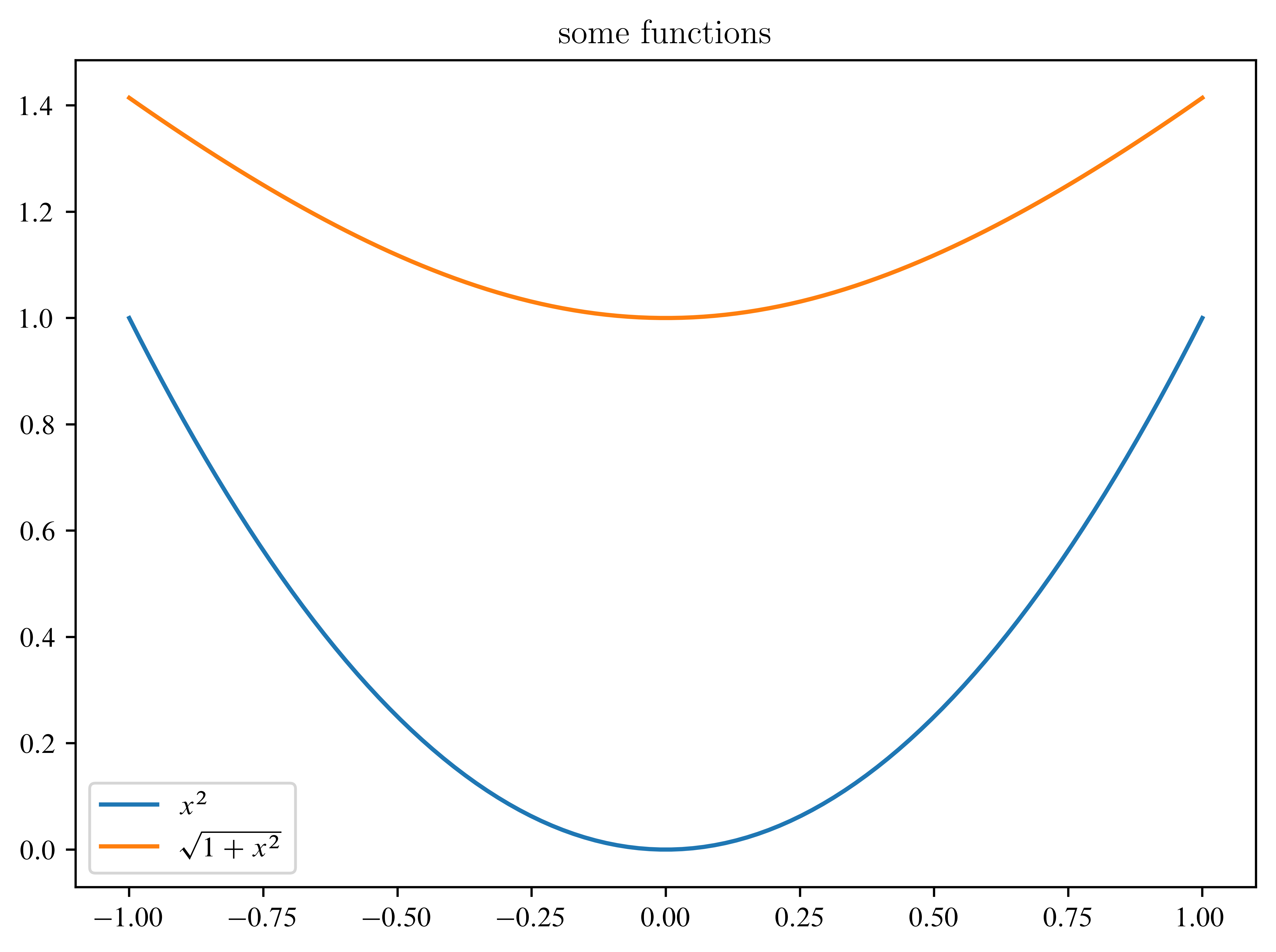

Plot the functions and from -1 to 1
Add a title and a legend to the plot
Solution¶
# 1
a = np.arange(1, 3)
scal_prod = np.sum(a * a[::-1])
print(scal_prod)
# 2
x = np.linspace(-1, 1, 100)
plt.plot(x, x * x, label=r"$x^2$")
plt.plot(x, np.sqrt(1 + x * x), label=r"$\sqrt{1+x^2}$")
plt.legend()
plt.title("some functions")4
Vectors and matrices¶
Of course, we can use matrices and vectors as well.
# create a 5x5 identity matrix
A = np.eye(5)
# modify the matrix
A[:, 3] = 1
A[3, :] = -1
# create a random vector
v = np.random.rand(5)
# calculate matrix vector multiplication A*v
w = A @ v

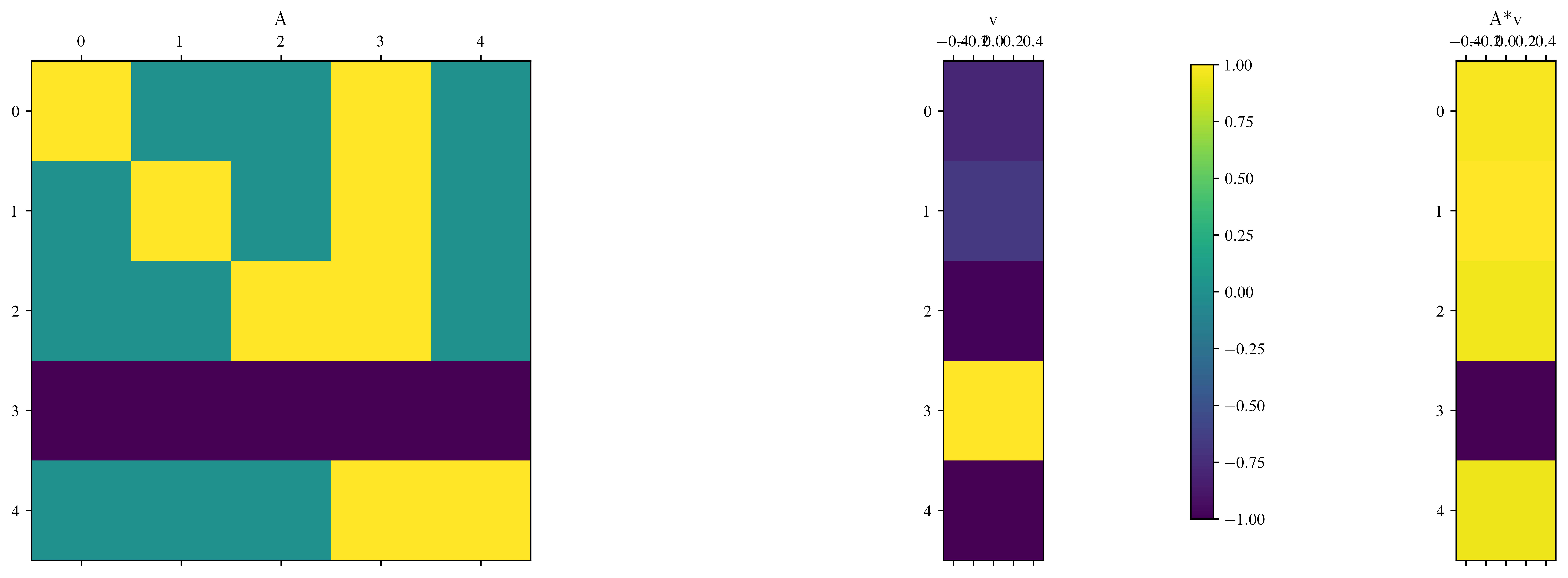

# or in pictures
fig, ax = plt.subplots(1, 3, figsize=(15, 5))
im = ax[0].matshow(A)
ax[0].set_title("A")
ax[1].matshow(v.reshape(5, 1)) # matshow expects a 2d array
ax[1].set_title("v")
ax[2].matshow(w.reshape(5, 1))
ax[2].set_title("A*v")
fig.colorbar(im, ax=ax)
plt.show()/usr/lib/python3.13/site-packages/IPython/core/pylabtools.py:170: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
fig.canvas.print_figure(bytes_io, **kw)

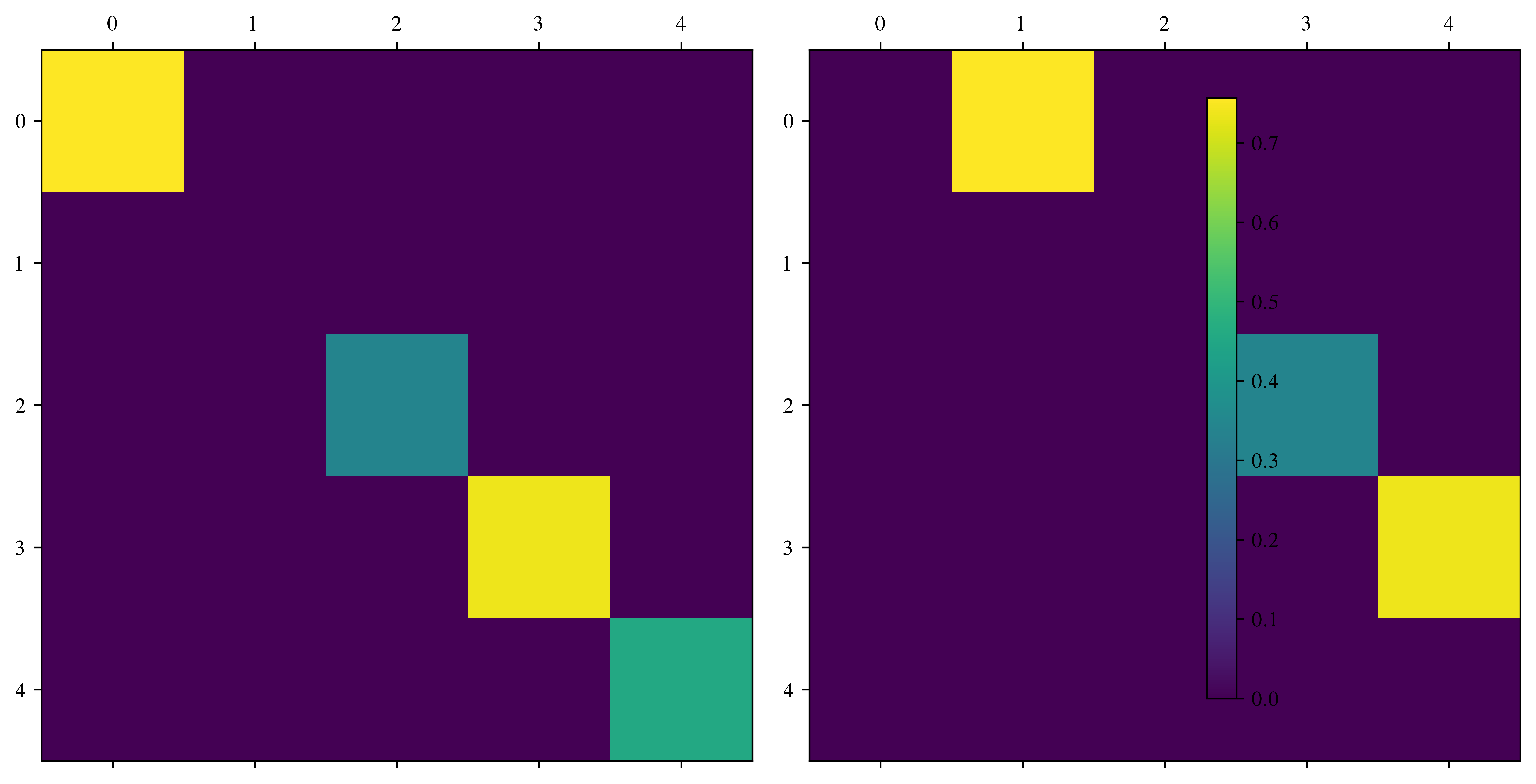

Another handy function is called np.diag, which can be used to operate on diagonals of arrays.
A = np.eye(5)
print(np.diag(A))
v = np.random.rand(5)
print(v)
fig, ax = plt.subplots(1, 2, figsize=(10, 5))
ax[0].matshow(np.diag(v))
im = ax[1].matshow(np.diag(v[:-1], k=1))
fig.colorbar(im, ax=ax)[1. 1. 1. 1. 1.]
[7.56238752e-01 7.03820602e-05 3.41075155e-01 7.38110464e-01
4.55669711e-01]
/usr/lib/python3.13/site-packages/IPython/core/events.py:82: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
func(*args, **kwargs)
Exercises¶

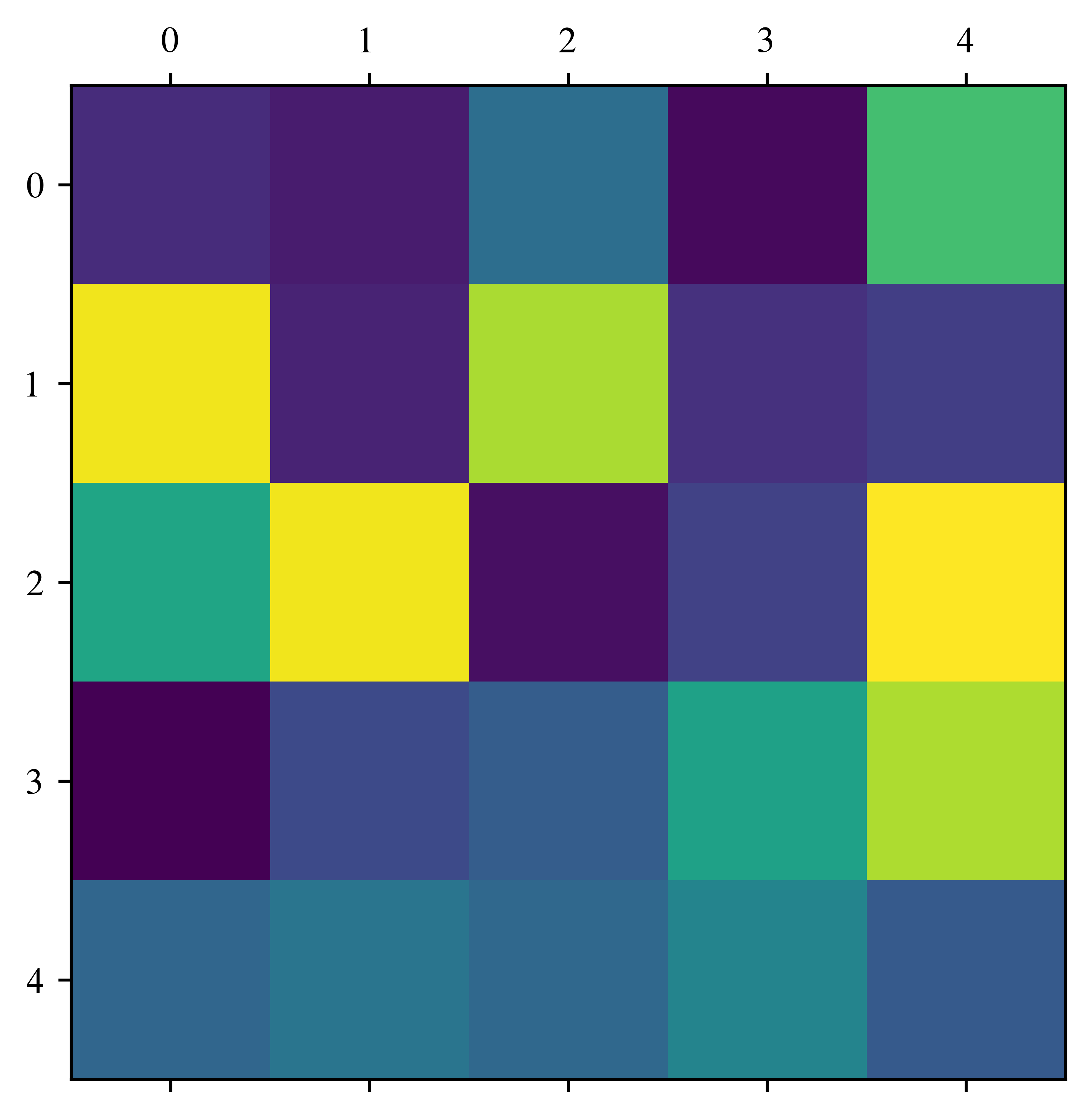

Create a random 5x5 Matrix
Plot this matrix
Create tridiagonal matrix, which has 2 on its diagonal and -1 on both first off diagonals.
Apply this matrix to the vector
(0,0,1,0,0)
Solution¶
# 1
A = np.random.rand(5, 5)
plt.matshow(A)
# 2
ones = np.ones(5)
B = 2 * np.diag(ones) - np.diag(ones[1:], k=1) - np.diag(ones[:-1], k=-1)
v2 = np.zeros(5)
v2[2] = 1
print(B @ v2)[ 0. -1. 2. -1. 0.]
For loops¶
Let’s compare the speed of matrix-vector multiplication in numpy with a simple for-loop.
n = 1000
A = np.eye(n)
v = np.linspace(0, 1, n)
time_np_start = time.time()
w = A @ v
time_np_end = time.time()
time_np = time_np_end - time_np_start
time_for_loop_start = time.time()
w = np.zeros(n)
for i in range(n):
for j in range(n):
w[i] = A[i, j] * v[j]
time_for_loop_end = time.time()
time_for_loop = time_for_loop_end - time_for_loop_start
print("Time required by numpy:", time_np)
print("Time required by standard for loop:", time_for_loop)
print("numpy is", time_for_loop / time_np, "times faster!")Time required by numpy: 0.0034089088439941406
Time required by standard for loop: 0.3761720657348633
numpy is 110.34969925863757 times faster!
It is good to keep this in mind!
Masking¶
Masking is the possibility to select entries of an array by a given array of Booleans or integers
Execute the next Cell several times
n = 5
v = np.linspace(0, 1, n)
# create array of Booleans
mask = v > 0.5
print(v)
print(mask)
# print only the selction
print(v[mask])
# print the indices
print(np.where(v > 0.5)[0])
# let's create a random order of this vector
w = np.random.rand(n)
mask2 = np.argsort(w)
print("random vector", w)
print("sorted random vector", w[mask2])
print("random order", v[mask2], "with order", mask2)[0. 0.25 0.5 0.75 1. ]
[False False False True True]
[0.75 1. ]
[3 4]
random vector [0.38198618 0.77773554 0.59177799 0.87285466 0.51946124]
sorted random vector [0.38198618 0.51946124 0.59177799 0.77773554 0.87285466]
random order [0. 1. 0.5 0.25 0.75] with order [0 4 2 1 3]
Exercises¶
Create a random 10 by 10 matrix
Plot the matrix
Print the position and the maximal value (argmax)
Bonus for fast people (Is it before 14:20?)
Warning: Matrix modifications¶
# Case1: Assign an array and modify it afterwards
A = np.eye(5)
B = np.eye(5)
C = A
C[0, 0] = 10
# now, we'd like to check the equality of the two matrices
# A == B is bad idea for floating point numbers
# np.abs(A-B) < 1e-10 creates a boolean array ( |a_ij-b_ij| < 1e-10 )
# np.all returns True if all entries are True
print("Case1: A == B?", np.all(np.abs(A - B) < 1e-10))
# Case2: Copy an array
A = np.eye(5)
B = np.eye(5)
C = A.copy()
C[0, 0] = 10
print("Case2: A == B?", np.all(np.abs(A - B) < 1e-10))
# Case3: Copy all entries
A = np.eye(5)
B = np.eye(5)
C[:, :] = A[:, :] # all elements
C[0, 0] = 10
print("Case3: A == B?", np.all(np.abs(A - B) < 1e-10))Case1: A == B? False
Case2: A == B? True
Case3: A == B? True
What happens here?!
Explanation:
For integers, x=y means: The value of x is copied to y. For large arrays, this copy can get very expensive, as we would require double the storage in memory, even if we only changed one value.
Therefore, this is usually avoided and if we run C=A, this simply tells the program: “If someone wants to use C, look at the place in memory where A is stored”. So both A and C point to the same block of memory. Consequently, modifying C also changes the values of A.
To avoid this, A.copy() was introduced. This does a (potentially expensive) copy, for situations where this is actually requierd. So make sure to use copies wisely.
Let’s look at this a little further:
def create_id_matrix():
A = np.eye(5)
return A
def some_matrix_mod(A):
A[0, 0] = 10.0
return A# Case1: create an array via a function
A = np.eye(5)
B = create_id_matrix()
print("Case1:")
print(" A == B?", np.all(np.abs(A - B) < 1e-10))
# Case2: change an array inside a function
A = np.random.rand(5, 5) # has entries between 0 and 1
B = A.copy()
some_matrix_mod(A)
print("Case2:")
print(" A == B?", np.all(np.abs(A - B) < 1e-10))
# Case3: change the identity inside a function
A = np.eye(5)
B = A.copy()
C = some_matrix_mod(A)
print("Case3:")
print(" A == B?", np.all(np.abs(A - B) < 1e-10))
print(" A == C?", np.all(np.abs(A - C) < 1e-10))Case1:
A == B? True
Case2:
A == B? False
Case3:
A == B? False
A == C? True
Weird, isn’t it?
Take-home message: If you pass an array to a function, the function will edit the original array. This can be a common source of errors.
Exercise:¶
Predict the behavior of the following functions:
# a safe, but slow method
# therefore: please avoid this
def some_matrix_mod2(D):
E = D.copy()
E[0, :] = 10
return E
def some_matrix_mod3(D):
E = D.copy()
D[-1, -1] = 3
return E
def some_matrix_mod4(D):
E = D[:, :]
D[0, 0] = 3
return E# Your prediction (please modify this):
pred_A_equal_B = [False, False, False]
pred_returns_equal_A = [False, False, False]Please execute the cell above with your input Now, check it:
# Array of functions
mat_mods = [some_matrix_mod2, some_matrix_mod3, some_matrix_mod4]
if not np.any(pred_A_equal_B) and not np.any(pred_returns_equal_A):
print("Please enter your predictions")
else:
print(not pred_A_equal_B)
print(not pred_returns_equal_A)
# for loop over mat_mods; index i increases in parallel
for i, func in enumerate(mat_mods):
A = np.random.rand(5, 5)
B = A.copy()
C = func(A)
# A == B
is_A_equal_B = np.all(np.abs(A - B) < 1e-10)
# A == C
is_result_equal_A = np.all(np.abs(A - C) < 1e-10)
if (
is_A_equal_B == pred_A_equal_B[i]
and is_result_equal_A == pred_returns_equal_A[i]
):
print(func, "correct ")
else:
print(
"please modify the prediction for",
func,
" and rerun this and the cell above",
)Please enter your predictions
Solution:¶
pred_A_equal_B = [True, False, False]
pred_returns_equal_A = [False, False, True]
